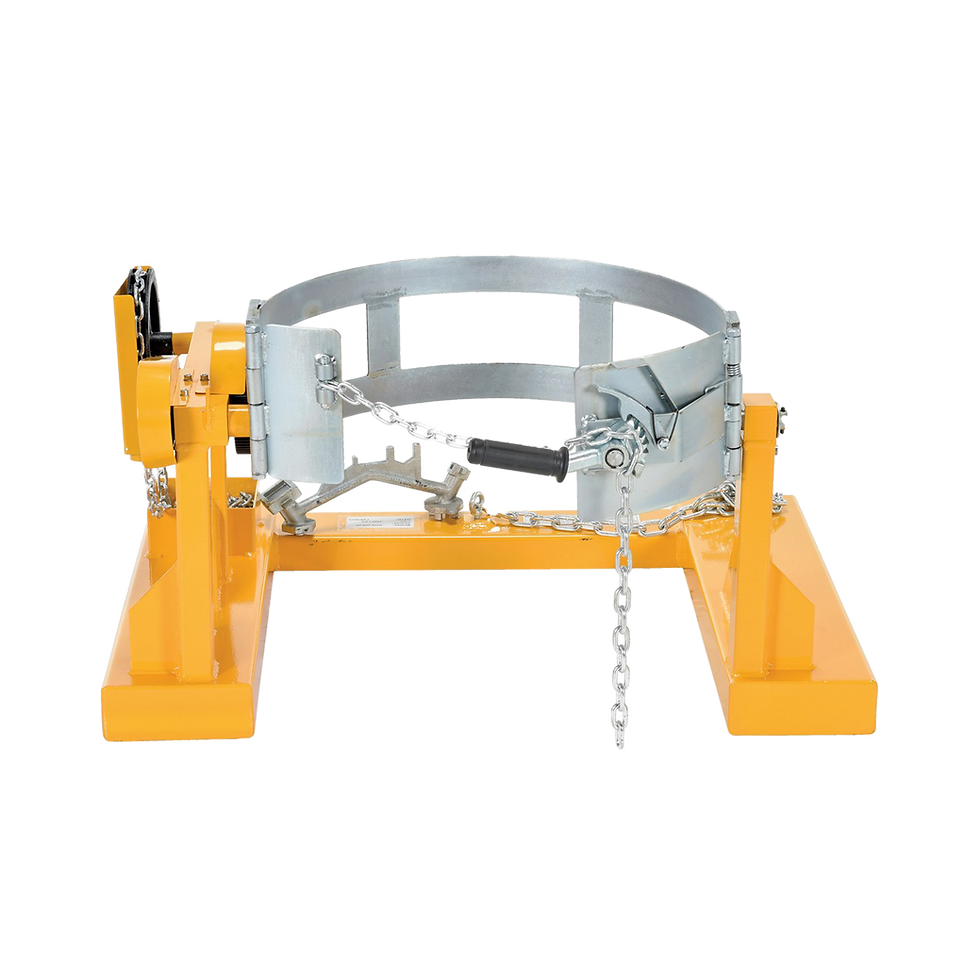

1500 lb manual drum carrier-rotator

Manual Fork Truck Drum Carrier/Rotator 1500lbs.

SKU: ESDCR-205-15
$1,031.15Price
Manual Fork Truck Drum Carrier/Rotator 1500lbs.

This product allows you to easily transport and rotate 55-gallon steel drums using a fork truck. Each standard unit is provided with a 15 foot long chain to allow the drum to be rotated up to 360 degrees from the fork truck operator's seat. Fork pockets measure 7-5/8"W x 2-5/8"H usable. Safety restraint is used to secure unit to fork truck.
Quantity

  • Product Specifications

    Uniform Capacity (lb.): 1,500 lbs.

    Accepts: 55-gallon steel drum

    Rotation Chain (ft.): 15'

    Drum Rotation (degree): 360

    Fork Pocket Height (in.): 2-5/8"

    Fork Pocket Width (in.): 7"

    Fork Pocket Centers (in.): 31-3/8"

    Crank Turns per 90 degree Rotation (qty.): 10

    Safety Chain (in.): 56"

    Drum Restraint Method: Chain

    Drum Restraint Chain Length (in.): 33"

    Drum Cradle Finish: Zinc Plated

  • Technical Data Sheet

    ESDCR-205-15 Drawing
